4.25G SFP Modules 850NM Wavelength WITH VCSEL Laser Transmitter

Sourcelight Technology Limited
Contact Now

4.25G SFP Modules 850NM Wavelength WITH VCSEL Laser Transmitter

Brand Name : Sourcelight or OEM

Model Number : SFP-FC4G-SW

Certification : CE/FCC/RoHS/TUV/UL

Place of Origin : Shenzhen,China

MOQ : 1PCS

Price : Get Latest Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500PCS Per Week

Delivery Time : Shipped in 1 days after PO confirmed

Packaging Details : 10PCS or 20PCS Plastic trays; 1pc gift box.

Datarate : 4.25G

Wavelength : 850NM

Distance : 300m

Transmitter : VCSEL Laser

Receiver : pin photo detector

Interface : Duplex LC/UPC

Contact Now

SFP-FC4G-SW 1/2/4Gbps Fibre Channel Shortwave SFP 850nm LC

Overview

The transceiver consists of three sections: a 850nm VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)1. They are compatible with Fiber Channel per FC-PI-2 Rev. 10.0. also simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3.

Features

  • Single 3.3 V supply
  • Up to 500m on 50/125µm MMF, 300m on 62.5/125µm MMF
  • Supports 1.0625/2.125/4.25Gb/s Fiber Channel Operation
  • Gigabit Ethernet compatible
  • 850nm VCSEL laser transmitter
  • SFP MSA SFF-8074i compliant
  • Digital Diagnostic SFF-8472 compliant
  • Compatible with RoHS
  • Operating case temperature: Standard : 0 to +70°C

Parameter

Package (Form Factor) SFP-FC4G-SW
Data Rate (typical) 4.25 Gb/s
Centre Wavelength 850nm
Distance 500m
Diagnostics Digital Monitor
Transmitter VCSEL Laser
Receiver PIN photo detector
TX Output Power (dBm) -9~-2.5
RX Sensitivity (dBm) -15
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Duplex LC/UPC

Application
  • Tri Rate 1.0625 / 2.125 / 4.25Gbp/s Fiber Channel
  • 1.25Gbp/s 1000Base-LX Ethernet and 1000Base-LX10

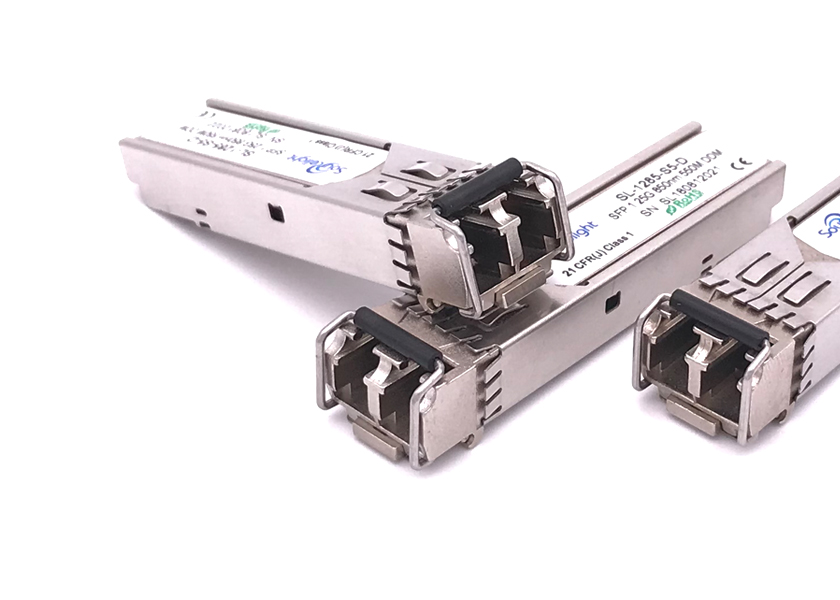

4.25G SFP Modules 850NM Wavelength WITH VCSEL Laser Transmitter

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
